EJA438E-DASCG-912DB Gauge Pressure Transmitter With Remote Diaphragm Seal OEM
Product Description

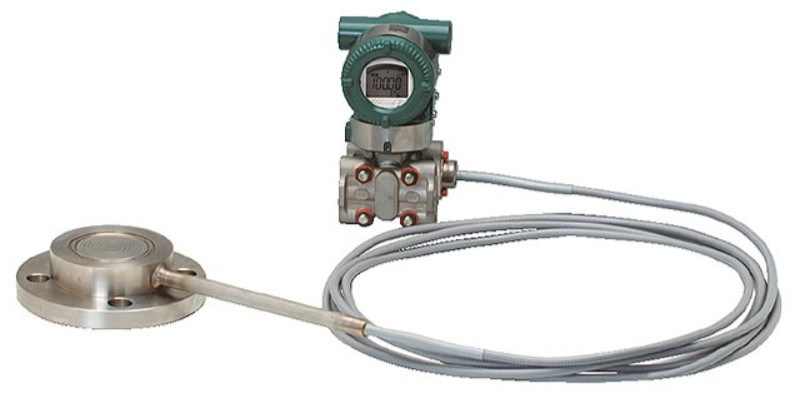

EJA438E-DASCG-912DB Gauge Pressure Transmitter with Remote Diaphragm Seal
Technical Specifications
| Manufacturer | Yokogawa |
|---|---|
| Product No. | EJA438E-DASCG-912DB-WJ13B2SW00-BA22 |
| Product Type | Diaphragm sealed gauge pressure transmitter |
| Output signal | 4 to 20 mA DC with digital communication (BRAIN protocol) |
| Measurement span (capsule) | 0.06 to 3.5 MPa (8.6 to 500 psi) |
| Coverflange bolts and nuts material | 316L SST |
| Installation | Horizontal piping type and left side high pressure |
| Electrical connection | G 1/2 female, one electrical connection without blind plugs |
| Process connection style | Flush type |
| Flange rating | ANSI class 150 |
| Process connection size | 2-inch (50 mm) |
| Wetted parts material | 316L SST |
| Fill fluid | Silicone oil (Process temperature: -10 to 250°C, Ambient temperature: -10 to 60°C) |
| Capillary length | 7m |
| Weight | approx. 9.8 Kg (Shipping Weight: 11 Kg) |
Standard Features
- ± 0.2% Accuracy
- 200 ms Response Time
- Exida and TUV SIL2 / SIL3 Certified
- Local Parameter Setting (LPS)
- 10-segment Signal Characterizer
- Active Capillary Fill Fluid Density Compensation
