Yokogawa EJA Pressure Transmitter
>
EJA130E Yokogawa Differential Pressure Transmitter
|
EJA130E Yokogawa Differential Pressure Transmitter
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJA130E-JHS4J-817EB/FF1/D4 |
Product Details
Model:
EJA130E-JHS4J-817EB/FF1/D4
Manufacturer:
Yokogawa
Accuracy::
± 0.055% Accuracy
Product Name:
Differential Pressure Transmitter
Response Time:
150 Ms
Stability:
± 0.1% Stability Per 10 Years
Certificate:
Exida And TUV SIL 2/3 Certified
Shipping Weight:
7kg
Highlight:
Yokogawa EJA130E
,150 ms Yokogawa Differential Pressure Transmitter
,500 kPa yokogawa dp transmitter
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
factory original
Delivery Time
8-10weeks
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description

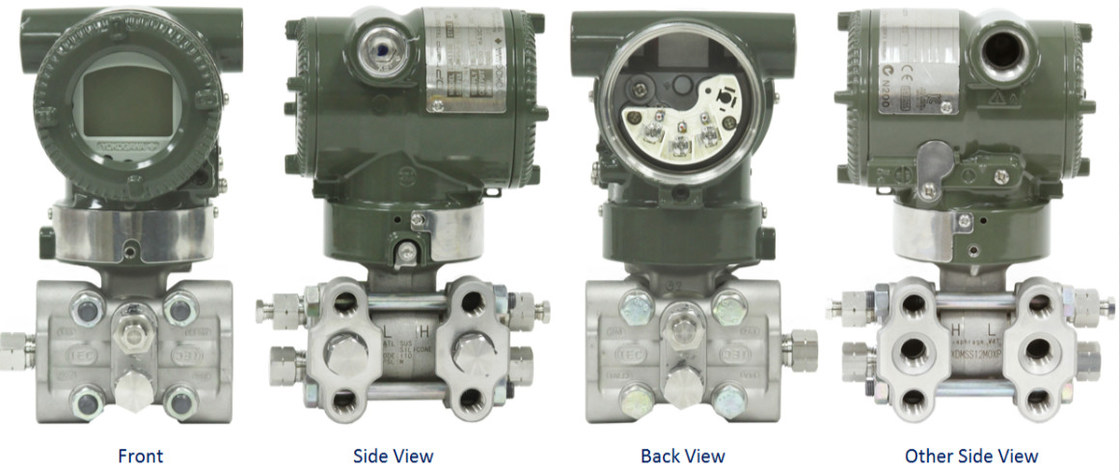

EJA130E Yokogawa Differential Pressure Transmitter
Product Details
EJA130E-JHS4J-817EB/FF1/D4 Yokogawa EJA130E Differential Pressure Transmitter
| Manufacturer | Yokogawa |
|---|---|
| Product No. | EJA130E-JHS4J-817EB/FF1/D4 |
| Product Type | EJA130E Differential Pressure Transmitter |
| Model | EJA130E - Differential pressure transmitter |
| Output Signal | J - 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) |
| Measurement Span | H - 5 to 500 kPa (20 to 2000 inH2O) |
| Wetted Parts Material | S - Users must consider the characteristics of selected wetted parts material and influence of process fluids. Specifying inappropriate materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process fluids. |
| Process Connections | 4 - with 1/2 NPT female process connector |
| Bolts and Nuts Material | J - B7 carbon steel |
| Installation | 8 - Horizontal piping and right side high pressure |
| Amplifier Housing | 1 - Cast aluminum alloy |
| Electrical Connection | 7 - 1/2 NPT female, two electrical connections and a blind plug |
| Integral Indicator | E - Digital indicator with the range setting switch (push button) |
| Mounting Bracket | B - 304 SST 2-inch pipe mounting, flat type (for horizontal piping) |
| Factory Mutual (FM) | FF1 - FM Explosionproof Approval *1 Applicable Standard: FM3600, FM3615, FM3810, ANSI/NEMA 250 Explosionproof for Class I, Division 1, Groups B, C and D, Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G, in Hazardous locations, indoors and outdoors (Enclosure: Type 4X) "FACTORY SEALED, CONDUIT SEAL NOT REQUIRED." Temperature class: T6, Amb. Temp.: -40 to 60°C (-40 to 140°F) |
| Calibration Units | D4 - M calibration (kgf/cm2 unit) |
| Weight | 6.8 Kg |
| Shipping Weight | 10 Kg |
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa. The EJA130E is a differential pressure transmitter designed to work in a high static pressure environment.
Key Performance Features
- Accurately: ± 0.055% Accuracy
- Reliably: ± 0.1% Stability per 10 years
- Quickly: 150 ms Response Time
Related Products
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
EJA530E In-Line Mount Gauge Pressure Transmitter
Available Models
| EJA130E-JMS4G-712DD/D4 |
| EJA130E-JMS5J-917DB/C1/X2 |
| EJA130E-JHS4J-817EB/FF1/D4 |
| EJA130E-JHS4J-817EB/FU1/D4 |
| EJA130E-JMS5J-719DC/NS21/N4 |
| EJA130E-EMS5B-99DA/X1/D4/M01/T09 |
| EJA130E-JMS4G-91DDJ/KS21/X2/HC/N4 |
| EJA130E-FHS5G-919DB/X2/D4/M01/T09/KS26 |
| EJA130E-FMS5G-919DB/X2/D4/M01/T09/KS26 |
| EJA130E-JMS5G-719DD/X2/D4/M01/T09/KU22 |
| EJA130E-FMS5G-919DB/X2/D4/M01/T09/KS26 |
| EJA130E-FMS5G-919DB/KS26/X2/D4/M01/T09 |
