Yokogawa EJA Pressure Transmitter
>
Hastelloy LPS Differential Draft Range Pressure Transmitter EJA120E-JES4G-912DB
|

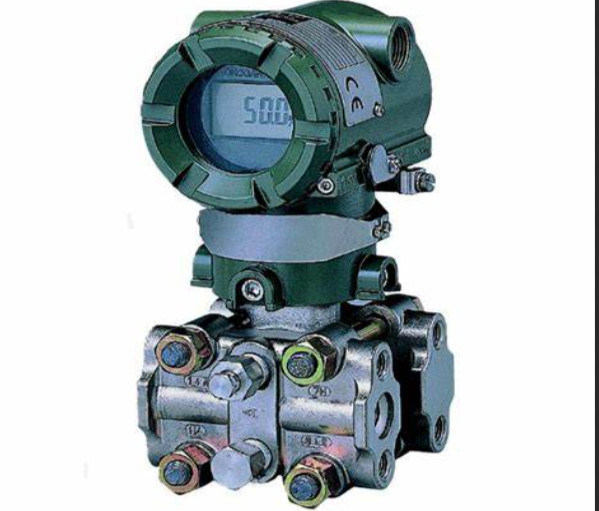

Hastelloy LPS Differential Draft Range Pressure Transmitter EJA120E-JES4G-912DB
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJA120E-JES4G-912DB |
Product Details
Model:
EJA120E-JES4G-912DB
Setting:
Local Parameter Setting (LPS)
Accuracy::
± 0.2% Accuracy (0.09% Available With /HAC Option)
Shipping Weight:
7kg
Design:
True Draft Range Design
Response Time:
150 Ms
Stability:
± 0.3% Per 1 Year Stability
Certificate:
Exida And TUV SIL 2/3 Certified
Packing:
Standard Yokogawa Carton
Highlight:
Hastelloy Draft Range Pressure Transmitter
,EJA120E Draft Range Pressure Transmitter
,EJA120E Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
factory original
Delivery Time
8-10weeks
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description
Hastelloy LPS Differential Draft Range Pressure Transmitter EJA120E-JES4G-912DB
Product Description
EJA120E-JES4G-912DB EJA120E Draft Range Differential Pressure Transmitter
Technical Specifications
| Manufacturer | Yokogawa |
|---|---|
| Product No. | EJA120E-JES4G-912DB |
| Product Type | Differential Pressure Transmitter |
| Output Signal | J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) |
| Measurement span (capsule) | E = 0.1 to 1 kPa (0.4 to 4 inH2O) |
| Wetted parts material | S |
| Cover flange and process connector | ASTM CF-8M |
| Capsule | Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others) |
| Capsule gasket | PTFE Teflon |
| Vent/Drain plug | 316 SST |
| Process connections | 4 = with 1/2 NPT female process connector |
| Bolts and nuts material | G = 316L SST |
| Amplifier housing | 1 = Cast aluminum alloy |
| Electrical connection | 2 = 1/2 NPT female, two electrical connections without blind plugs |
| Integral indicator | D = Digital indicator |
| Weight | 3.7 Kg |
| Shipping Weight | 8 Kg |
Product Overview
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness of the EJA-E series with the performance of the EJX-A series. The EJA120E is the traditional-mount Draft Range Pressure Transmitter in this series.
Key Features
- ± 0.2% Accuracy (0.09% available with /HAC option)
- ± 0.3% per 1 year Stability
- 150 ms Response Time
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
- True Draft Range design
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
Related Products
EJX110A Differential Pressure Transmitter, EJX118A Diaphragm Sealed Differential Pressure Transmitter, EJX130A Differential Pressure Transmitter, EJX120A Differential Pressure Transmitter, EJX310A Absolute Pressure Transmitter, EJX430A Gauge Pressure Transmitter, EJX440A Gauge Pressure Transmitter, EJX510A and EJX530A Absolute and Gauge Pressure Transmitter, EJX610A and EJX630A Absolute and Gauge Pressure Transmitter, EJX210A Flange Mounted Differential Pressure Transmitter, EJA110E Differential Pressure Transmitter, EJA115E Low Flow Transmitter, EJA118E Diaphragm Sealed Differential Pressure Transmitter, EJA510E and EJA530E Absolute and Gauge Pressure Transmitter, EJA120E Differential Pressure Transmitter, EJA130E Differential Pressure Transmitter, EJA210E Flange Mounted Differential Pressure Transmitter, EJA310E Absolute Pressure Transmitter, EJA430E Gauge Pressure Transmitter, EJA438E Diaphragm Sealed Gauge Pressure Transmitter, EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type), EJA440E Gauge Pressure Transmitter, EJA530E In-Line Mount Gauge Pressure Transmitter
Ordering Information
- Place of delivery (EXW/FOB/CIF): EXW
- Packing cost: For free
- Unit weight: Kg/lbs 8kg
- Unit dimensions: (W x L x H) : 40*35*30cm
- HS Code: 90261000
- Payment terms: TT
- Warranty: 12 months
