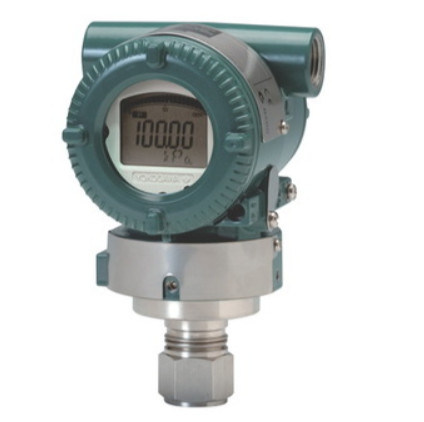

Fieldbus In Line Yokogawa EJA510E EJA Pressure Transmitter 5V
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJA510E-DAS7N-012DN/D4/HE |
5V yokogawa eja510e
,Fieldbus yokogawa eja510e
,eja510e yokogawa Transmitter
Manufacturer: Yokogawa
Product No.: EJA510E-DAS7N-012DN/D4/HE
Product type: EJA510E Absolute Pressure Transmitter
| Specification | Details |
|---|---|
| Output signal | J = 4 to 20 mA DC Output with digital communication |
| Measurement span (capsule) | B = 0.1 to 2 MPa (14.5 to 290 psi) |
| Wetted parts material | S = Process connector 316L SST, Diaphragm Hastelloy C-276, Others 316L SST |
| Process connections | 4 = 1/2 NPT female |
| Amplifier housing | 1 = Cast aluminum alloy |
| Electrical connection | 7 = 1/2 NPT female, two electrical connections with a blind plug |
| Integral indicator | E = Digital indicator with the range setting switch (push button) |
| Mounting bracket | L = 316 SST 2-inch pipe mounting |
| Shipping weight | 4Kg |
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa. The EJA510E is our in-line mount absolute pressure transmitter in the series.
- ± 0.055% Accuracy (0.04% Accuracy optional)
- ± 0.2% Stability per 10 years
- 90 ms Response Time
- Exida and TUV SIL 2/3 Certified
- 8,700 psia Maximum Over Pressure
- Local Parameter Setting (LPS)
- Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication
EJX110A Differential Pressure Transmitter, EJX118A Diaphragm Sealed Differential Pressure Transmitter, EJX130A Differential Pressure Transmitter, EJX120A Differential Pressure Transmitter, EJX310A Absolute Pressure Transmitter, EJX430A Gauge Pressure Transmitter, EJX440A Gauge Pressure Transmitter, EJX510A and EJX530A Absolute and Gauge Pressure Transmitter, EJX610A and EJX630A Absolute and Gauge Pressure Transmitter, EJX210A Flange Mounted Differential Pressure Transmitter, EJA110E Differential Pressure Transmitter, EJA115E Low Flow Transmitter, EJA118E Diaphragm Sealed Differential Pressure Transmitter, EJA510E and EJA530E Absolute and Gauge Pressure Transmitter, EJA120E Differential Pressure Transmitter, EJA130E Differential Pressure Transmitter, EJA210E Flange Mounted Differential Pressure Transmitter, EJA310E Absolute Pressure Transmitter, EJA430E Gauge Pressure Transmitter, EJA438E Diaphragm Sealed Gauge Pressure Transmitter, EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type), EJA440E Gauge Pressure Transmitter, EJA530E In-Line Mount Gauge Pressure Transmitter
| EJA510E-JAS4N-017DL/D3 |
| EJA510E-JAS4N-017DL/D4 |
| EJA510E-JBS4N-019DN/D4 |
| EJA510E-DAS7N-012DN/D4/HE |
| EJA510E-JCS4N-019DL/KU22 |
