Yokogawa EJA Pressure Transmitter
>
Diaphragm Sealed Differential DP Transmitter Yokogawa EJA118E-FHSCJ-914DB
|
Diaphragm Sealed Differential DP Transmitter Yokogawa EJA118E-FHSCJ-914DB
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W |
Product Details
Model:
EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W
Setting:
Local Parameter Setting (LPS)
Accuracy::
± 0.2% Accuracy
Manufacturer:
Yokogawa
Packing:
Standard Yokogawa Carton
Product Name:
DP Transmitter With Remote Diaphragm Seals
Response Time:
200 Ms
Capillary:
Active Capillary Fill Fluid Density Compensation
Highlight:
Differential DP Transmitter
,Diaphragm DP Transmitter
,DP Yokogawa EJA118E
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
factory original
Delivery Time
8-10weeks
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description

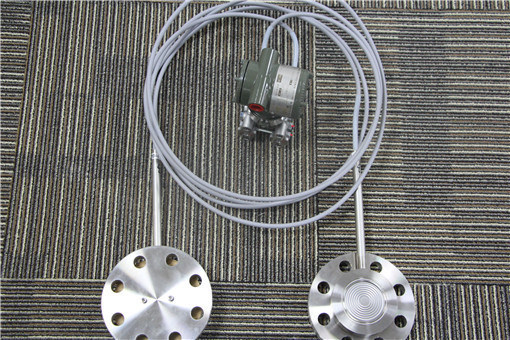

Diaphragm Sealed Differential DP Transmitter Yokogawa EJA118E-FHSCJ-914DB
EJA118E-FHSCJ-914DB EJA118E DP Transmitter with Remote Diaphragm Seals
Manufacturer: Yokogawa
Product No.: EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W
| Specification | Detail |
|---|---|
| Product type | Diaphragm Sealed Differential Pressure Transmitter |
| Coverflange bolts and nuts material | G = 316L SST |
| Installation | 9 = Horizontal piping type and left side high pressure |
| Electrical connection | 4 = M20 female, two electrical connections without blind plugs |
| Integral indicator | D = Digital indicator |
| Mounting bracket | N = None |
| Process connection style | W = Flush type |
| Flange rating | A4 = ANSI class 600 |
| Process connection size | 2 = 2-inch (50 mm) |
| Flange material | C = 316 SST |
| Gasket contact surface | 2 = Flat (no serration) |
| Wetted parts material | SW = 316L SST [Diaphragm], 316L SST [Others] |
| Flushing connection ring | 0 = None |
| Extension | 0 = None |
| Weight | 17.6 Kg |
| Shipping Weight | 23 Kg |
Product Overview
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness of the EJA-E series with the performance of the EJX-A series. The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.
Key Features
- ± 0.2% Accuracy
- 200 ms Response Time
- Exida and TUV SIL2 / SIL3 Certified
- Local Parameter Setting (LPS)
- 10-segment Signal Characterizer
- Active Capillary Fill Fluid Density Compensation
