Sealed HART 7 DP Differential Yokogawa EJA Pressure Transmitter EJA118E
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJA118E-DMSCG-912DB-WJ13B2SW00-BA23/D4 |
Sealed Yokogawa EJA Pressure Transmitter
,HART Yokogawa EJA Pressure Transmitter
,HART 7 dp pressure transmitter
| Manufacturer | Yokogawa |
|---|---|
| Product No. | EJA118E-DMSCG-912DB-WJ13B2SW00-BA23/D4 |
| Product Type | Diaphragm Sealed Differential Pressure Transmitter |
| Output Signal | 4 to 20 mA DC with digital communication (BRAIN protocol) (HART 5/HART 7 protocol) |
| Measurement Span | 2.5 to 100 kPa (10 to 400 inH2O) |
| Cover Flange Bolts/Nuts Material | 316L SST |
| Installation | Horizontal piping type and left side high pressure |
| Amplifier Housing | Cast aluminum alloy |
| Integral Indicator | Digital indicator |
| Mounting Bracket | 304 SST 2-inch pipe mounting, flat type (for horizontal piping) |
| Process Connection Style | Flush type |
| Flange Rating | JIS 10K |
| Process Connection Size | 3-inch (80 mm) |
| Flange Material | 304 SST |
| Wetted Parts Material | Tantalum [Diaphragm], Tantalum [Others] |
| Fill Fluid | Silicone oil (for general use) |
| Capillary Length | 3 m |
| Weight | 16.1 Kg |
| Shipping Weight | 19 Kg |

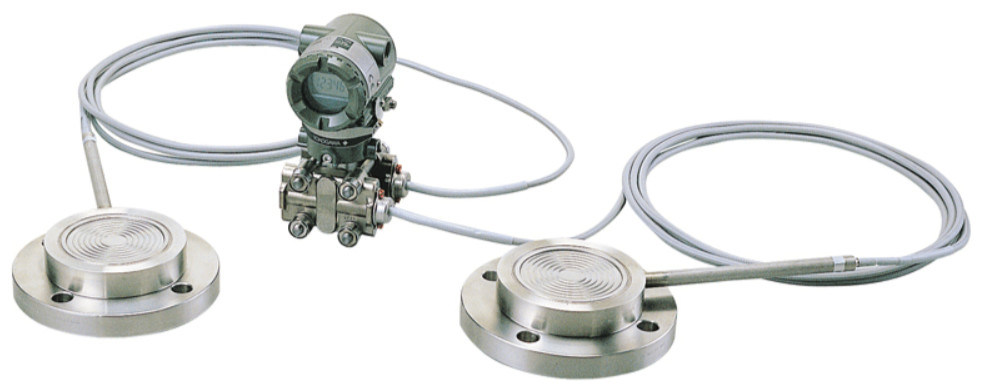

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines ruggedness and performance to deliver the quality expected from Yokogawa. The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.
- ± 0.2% Accuracy
- 200 ms Response Time
- Exida and TUV SIL2 / SIL3 Certified
- Local Parameter Setting (LPS)
- 10-segment Signal Characterizer
- Active Capillary Fill Fluid Density Compensation
EJX110A Differential Pressure Transmitter, EJX118A Diaphragm Sealed Differential Pressure Transmitter, EJX130A Differential Pressure Transmitter, EJX120A Differential Pressure Transmitter, EJX310A Absolute Pressure Transmitter, EJX430A Gauge Pressure Transmitter, EJX440A Gauge Pressure Transmitter, EJX510A and EJX530A Absolute and Gauge Pressure Transmitter, EJX610A and EJX630A Absolute and Gauge Pressure Transmitter, EJX210A Flange Mounted Differential Pressure Transmitter, EJA110E Differential Pressure Transmitter, EJA115E Low Flow Transmitter, EJA118E Diaphragm Sealed Differential Pressure Transmitter, EJA510E and EJA530E Absolute and Gauge Pressure Transmitter, EJA120E Differential Pressure Transmitter, EJA130E Differential Pressure Transmitter, EJA210E Flange Mounted Differential Pressure Transmitter, EJA310E Absolute Pressure Transmitter, EJA430E Gauge Pressure Transmitter, EJA438E Diaphragm Sealed Gauge Pressure Transmitter, EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type), EJA440E Gauge Pressure Transmitter, EJA530E In-Line Mount Gauge Pressure Transmitter.
