Yokogawa EJA Pressure Transmitter
>
150 ms Yokogawa EJA Pressure Transmitter , EJA low flow transmitter
|
150 ms Yokogawa EJA Pressure Transmitter , EJA low flow transmitter
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJA115E-DMS4G-912ED-N00NN0 |
Product Details
Model:
EJA115E-DMS4G-912ED-N00NN0
Setting:
Local Parameter Setting (LPS)
Accuracy::
0.055% Square Root Output Accuracy
Manufacturer:
Yokogawa
Warranty:
12 Months
Product Name:
Low Flow Transmitter
Response Time:
90 Ms ~ 150 Ms
Stability:
0.1% Per 10 Years Stability (DP)
Highlight:
4ma Yokogawa EJA Pressure Transmitter
,150 Ms Yokogawa EJA Pressure Transmitter
,EJA low flow transmitter
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
factory original
Delivery Time
8-10weeks
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description

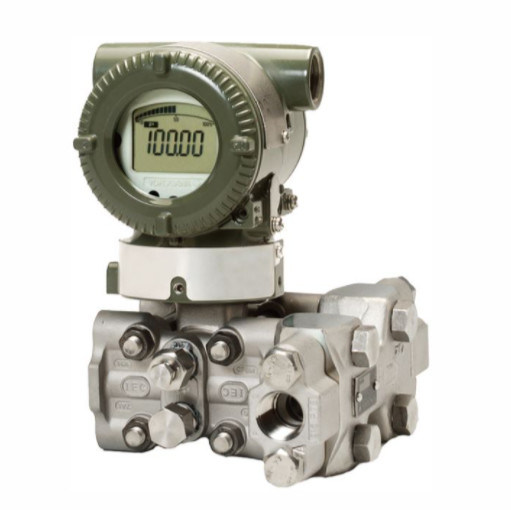

150 ms Yokogawa EJA Pressure Transmitter, EJA low flow transmitter
EJA115E-DMS4G-912ED-N00NN0 Yokogawa EJA Low Flow Transmitter
Product Specifications
| Manufacturer | Yokogawa |
|---|---|
| Product No. | EJA115E-DMS4G-912ED-N00NN0 |
| Product type | Low Flow Transmitter |
| Output signal | D = 4 to 20 mA DC with digital communication (BRAIN protocol) |
| Measurement span (capsule) | M = 2 to 100 kPa (8 to 400 inH2O) |
| Wetted parts material | S = Cover flange and process connector ASTM CF-8M, Capsule Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Vent/Drain plug 316 SST |
| Process connections | 4 = 1/2 NPT female |
| Bolts and nuts material | G = For cover flange 316L SST, for process connector 316L SST, for manifold 316L SST |
| Installation | 2 = Vertical impulse piping type, right side high pressure, manifold upside |
| Amplifier housing | 1 = Cast aluminum alloy |
| Electrical connection | 2 = 1/2 NPT female, two electrical connections without blind plugs |
| Integral indicator | D = Digital indicator |
| Mounting bracket | D = 304 SST or SCS13A 2-inch pipe mounting, L type (for vertical piping) |
| Shipping weight | 7KG |
Product Overview
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa. The EJA115E is Differential Pressure Transmitter in the series that is optimized for low flow applications with the addition of an Integral Flow Orifice (IFO).
Key Features
- 0.055% Square Root Output Accuracy
- 0.1% per 10 years Stability (DP)
- Exida and TUV SIL 2/3 Certified
- 90 ms ~ 150 ms Response Time
- Local Parameter Setting (LPS)
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, BRAIN communication.
