Yokogawa EJA Pressure Transmitter
>

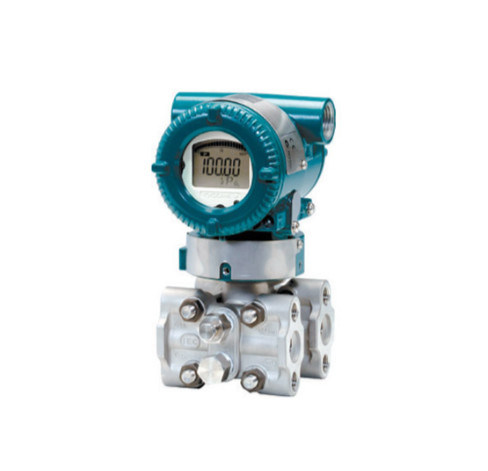

EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter
|
EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJX110A-FMS5G-914DJ/KS26/M01/T13/D3 |
Product Details
Model:
EJX110A-FMS5G-914DJ/KS26/M01/T13/D3
HS CODE:
90261000
Accuracy::
± 0.04% Accuracy (0.025% Accuracy Option Available)
Manufacturer:
Yokogawa
Warranty:
12 Months
Product Name:
Differential Pressure Transmitter
Response Time:
90 Ms
Stability:
± 0.1% Per 15 Years Stability
Highlight:
KS26 Differential Pressure Transmitter
,M01 Differential Pressure Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
factory original
Delivery Time
8-10weeks
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description
EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter
Product Description
Manufacturer: Yokogawa
Model: EJX110A-FMS5G-914DJ/KS26/M01/T13/D3
Model: EJX110A-FMS5G-914DJ/KS26/M01/T13/D3
Specifications
Model: EJX110A - Differential pressure transmitter
Output signal: F - Digital communication (FOUNDATION Fieldbus protocol)
Measurement span (capsule): M - 0.5 to 100 kPa (2 to 400 inH2O)
Process connections: 5 - without process connector (1/4 NPT female on the cover flanges)
Bolts and nuts material: G - 316L SST
Installation: 9 - Horizontal piping and left side high pressure
Amplifier housing: 1 - Cast aluminum alloy
Integral indicator: D - Digital indicator
Mounting bracket: J - 316 SST 2-inch pipe mounting, flat type (for horizontal piping)
Dimensions (HxWxD): 17.5cm x 11cm x 9.5cm
Shipping Weight: 8Kg
Additional Information
The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters. The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.
EJX110A Features
- ± 0.04% Accuracy (0.025% Accuracy option available)
- ± 0.1% per 15 years Stability
- 90 ms Response Time
- 3,600 psi MWP
- Exida and TUV SIL2 / SIL3 Certified
- Local Parameter Setting (LPS)
