EJX110A Yokogawa EJA Pressure Transmitter , 500 KPa Yokogawa Dp Transmitter
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJX110A-FHS5G-914DJ/KS26/M01/T13/D1 |

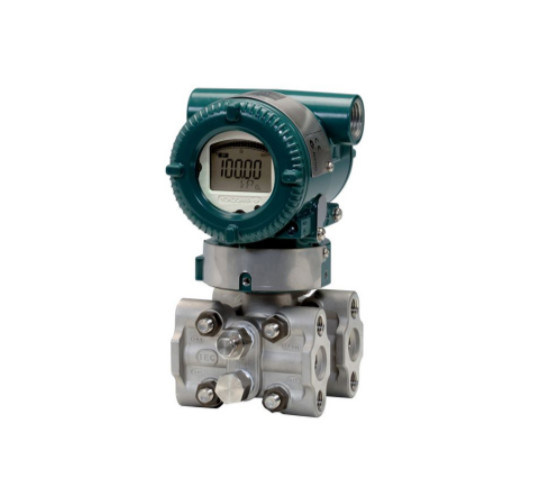

EJX110A Yokogawa EJA Pressure Transmitter
,90 ms Yokogawa EJA Pressure Transmitter
,500 kPa Yokogawa Dp Transmitter
Manufacturer: Yokogawa
Product No.: EJX110A-FHS5G-914DJ/KS26/M01/T13/D1
Product type: EJX110A Differential Pressure Transmitter
Output signal: F = Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C25T02-01EN)
Measurement span (capsule): H = 2.5 to 500 kPa (10 to 2000 inH2O)
Wetted parts material: S = Cover flange and process connector ASTM CF-8M *1, Capsule Hastelloy C-276 *2 (Diaphragm)F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Vent/Drain plug 316 SST
Bolts and nuts material: G = 316L SST
Installation: 9 = Horizontal piping and left side high pressure
Amplifier housing: 1 = Cast aluminum alloy
Integral indicator: D = Digital indicator
Shipping weight: 5 Kg
The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters. The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.
- ± 0.04% Accuracy (0.025% Accuracy option available)
- ± 0.1% per 15 years Stability
- 90 ms Response Time
- 3,600 psi MWP
- Exida and TUV SIL2 / SIL3 Certified
- Local Parameter Setting (LPS)
| EJX110A-EMS5G-919DB/KS21/D4 |
| EJX110A-EMS4G-919DB/KU22/N4 |
| EJX110A-EMS4J-919EN/KU22/M11/T13 |
| EJX110A-EMS5G-92DDN/KU22/D3/T13 |
| EJX110A-FHS5G-914DJ/KS26/M01/T13/D1 |
| EJX110A-FMS5G-914DJ/KS26/M01/T13/D3 |
| EJA110E-JMS5G-917DJ/KF22/D4/X2/C1/M01/T13/HC/HG |
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
EJA530E In-Line Mount Gauge Pressure Transmitter
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 7kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
A: Yes, they are new and original.
A: One-year warranty.
A: Yes, it depends on what product you request, please check details with our sales.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
