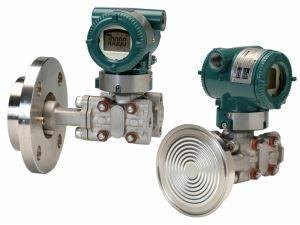

EJA210E-JHS4J Yokogawa Flange Mounted Differential Pressure Transmitter
|
EJA210E-JHS4J Yokogawa Flange Mounted Differential Pressure Transmitter
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJA210E-JHS4J-912DN-EA14A1SE01-B/D4 |
Product Details
Model:
EJA210E-JHS4J-912DN-EA14A1SE01-B/D4
Weight:
8.3kg
Shipping Weight:
11kg
Measurement Span (capsule):
1 To 100kPa (4 To 400 InH2O)
Installation:
Flange Mounted
Manufacturer:
Yokogawa
Product Name:
Flange Mounted Differential Pressure Transmitter
HS Code:
90261000
Warranty:
1 YEAR
Highlight:
Flange Mounted Differential Pressure Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
factory original
Delivery Time
8-10weeks
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description
EJA210E-JHS4J Yokogawa Flange Mounted Differential Pressure Transmitter
Manufacturer: Yokogawa
Product No.: EJA210E-JHS4J-912DN-EA14A1SE01-B/D4
Product No.: EJA210E-JHS4J-912DN-EA14A1SE01-B/D4
Product Specifications
| Specification | Detail |
|---|---|
| Product type | Flange Mounted Differential Pressure Transmitter |
| Output signal | J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) |
| Measurement span (capsule) | H = 5 to 500kPa (20 to 2000 inH2O) |
| Low pressure side Process connections | 4 = with 1/2 NPT female process connector |
| Coverflange bolts and nuts material | J = B7 carbon steel |
| Installation | 9 = Horizontal piping type and left side high pressure |
| Amplifier housing | 1 = Cast aluminum alloy |
| Electrical connection | 2 = 1/2 NPT female, two electrical connections without blind plugs |
| Flange rating | A1 = ANSI class 150 |
| Gasket contact surface | 1 = Serration (for ANSI flange only) |
| Wetted parts material (high pressure side) | WE = Hastelloy C-276 diaphragm, 316 SST, 316 SST pipe |
| Extension | 5 = Length (X2) = 150mm |
| Fill fluid | B = For general use (Silicone oil), -40 to 120°C process temperature, -40 to 85°C ambient temperature |
| Shipping Weight | 18 Kg |
Product Advantages
- The high performance flange mounted differential pressure transmitter EJA210E can be used to measure levels of densities of solidifying or precipitating liquids.
- EJA210E outputs a 4 to 20 mADC signal corresponding to the measured differential pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications.
- All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.
