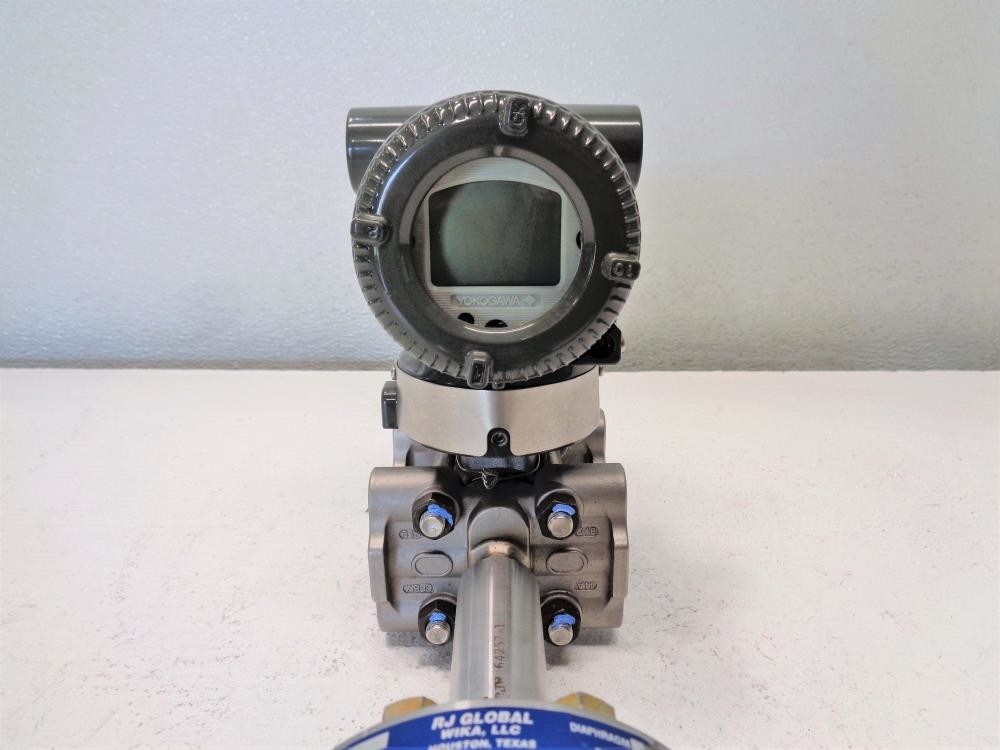

EJA430E Yokogawa EJA Pressure Transmitter EJA430E-FAS5G-919DJ Yokogawa
|
EJA430E Yokogawa EJA Pressure Transmitter EJA430E-FAS5G-919DJ Yokogawa
| Place of Origin | Japan |
| Brand Name | YOKOGAWA |
| Certification | ROHS |
| Model Number | EJA430E-FAS5G-919DJ/KS26/M01/T01/D3 |
Product Details
Unit Dimensions:
(W X L X H) : 40*35*30cm
Response Time:
90ms
Manufacturer:
Yokogawa
Model:
EJA430E-DBS4J-917DB/KF22
Stability:
±0.1% Of URL Per 7 Years
Accuracy:
±0.055% Of Span
Origin:
Japan
Warranty:
12 Months
Highlight:
EJA430E Yokogawa EJA Pressure Transmitter
,90ms Yokogawa EJA Pressure Transmitter
,Yokogawa gp transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000PCS
Product Description
EJA430E Yokogawa EJA Pressure Transmitter EJA430E-FAS5G-919DJ Yokogawa
Product Description
EJA430E-FAS5G-919DJ Yokogawa EJA430E Gauge Pressure Transmitter with Hart Protocol
Manufacturer: Yokogawa
Product No.: EJA430E-FAS5G-919DJ/KS26/M01/T01/D3
Product type: Gauge Pressure Transmitter
Technical Specifications
- EJA430E: Gauge pressure transmitter
- Measurement span (capsule): 0.03 to 3.5 MPa (4.3 to 500 psi)
- Wetted parts material:
- Cover flange and process connector: ASTM CF-8M
- Capsule: Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others)
- Capsule gasket: Teflon-coated 316L SST
- Vent/Drain plug: 316 SST
- Process connections: without process connector (1/4 NPT female on the cover flanges)
- Bolts and nuts material: 316L SST
- Installation: Horizontal piping and left side high pressure
- Amplifier housing: Cast aluminum alloy
- Electrical connections: M20 female, two electrical connections and a blind plug
- Weight: 2.8 Kg
- Shipping weight: 8 Kg
Key Features
- 0.055% Accuracy (0.04% Accuracy optional)
- 0.1% Stability per 10 years
- 90 ms Response Time
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
Detailed Specifications
| L Capsule | M Capsule | H Capsule | V Capsule |
|---|---|---|---|
| -10 to 10 kPa (-40 to 40 inH2O) | -100 to 100 kPa (-400 to 400 inH2O) | -500 to 500 kPa (-2000 to 2000 inH2O) | -0.5 to 14 MPa (-70 to 2000 psi) |
| 0.5 to 10 kPa (2 to 40 inH2O) | 1 to 100 kPa (4 to 400 inH2O) | 5 to 500 kPa (20 to 2000 inH2O) | 0.14 to 14 MPa (20 to 2000 psi) |
| ±0.075% | ±0.065% | ±0.065% | ±0.065% |
Degrees of Protection: IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates: FM, CENELEC ATEX, CSA, IECEx
Output: 4 to 20 mA DC, FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication
Supply Voltage: BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Ambient temperature: -40 to 85°C (-40 to 185°F) (general use type)
Process Temperature: -40 to 120°C (-40 to 248°F) (general use type)
Maximum Working Pressure: 16MPa(2300psi)
Mounting: 2-inch pipe mounting
