Yokogawa EJA Pressure Transmitter
>

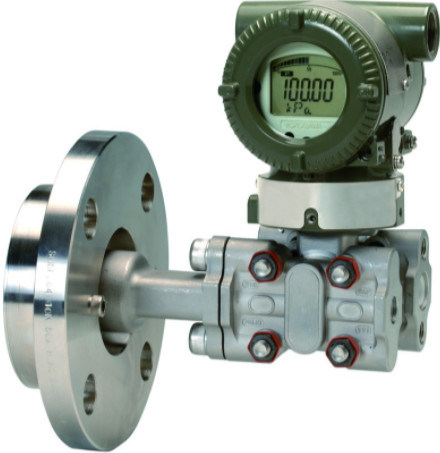

EJA210E-JMS4G Yokogawa Flange Mounted Differential Pressure Transmitter
|
EJA210E-JMS4G Yokogawa Flange Mounted Differential Pressure Transmitter
| Place of Origin | JAPAN |
| Brand Name | YOKOGAWA |
| Model Number | EJA210E |
Product Details
Brand Name:
Yokogawa
Accuracy:
0.2%
Model Number:
WNK4S
Output Signal:
Modbus,4~20mA
Measured Media:
Liquid, Gas And Steam
Housing Materials:
Aluminum14
Power Supply:
9~45V (9~24V, Ex)
Ex-proof:
ExiaII CT4/CT6, ExidIICT6
Highlight:
Yokogawa Differential Pressure Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
Negotiable
Packaging Details
factory original
Delivery Time
8-10weeks
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description
EJA210E-JMS4G Yokogawa Flange Mounted Differential Pressure Transmitter
Product Features
- Manufacturer: Yokogawa
- Product No.: EJA210E-JMS4G-917DN-WA13C2HW00-B/D4/TF1/M1W/T52/N4
- Product type: EJA210E Flange Mounted Differential Pressure Transmitter
- Output signal: J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
- Measurement span (capsule): M = 1 to 100kPa (4 to 400 inH2O)
- Low pressure side wetted parts material: S = Cover flange and process connector ASTM CF-8M, Capsule Hastelloy C-276 (Diaphragm), F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Drain/Vent plug 316 SST
- Process connections: 4 = with 1/2 NPT female process connector
- Coverflange bolts and nuts material: G = 316L SST
- Installation: 9 = Horizontal piping type and left side high pressure
- Amplifier housing: 1 = Cast aluminum alloy
- Electrical connection: 7 = 1/2 NPT female, two electrical connections with a blind plug
- Integral indicator: D = Digital indicator
- Process connection style: W = Flush type
- Flange rating: A1 = ANSI class 150
- Flange size: 3 = 3-inch (80mm)
- Flange material: C = 316 SST
- Gasket contact surface: 2 = Flat (no serration)
- Wetted parts material (high pressure side): HW = 316L SST# Diaphragm, 316 SST# Others
- Fill fluid: B = For general use (Silicone oil), -40 to 120°C Process temperature, -40 to 85°C Ambient temperature.
- Calibration units: D4 = M calibration (kgf/cm2 unit)
- Teflon film: TF1 = Diaphragm protection from sticky process fluid by FEP Teflon film attached with fluorinated oil. Operation range: 20 to 150°C, 0 to 2 MPa (Not applicable for vacuum service).
- Weight: 8.3 Kg
- Shipping weight: 11 Kg
Our Advantages
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves, Analysis meter, Positioner, Acuator, etc.
